Model : VACTM GK-9802

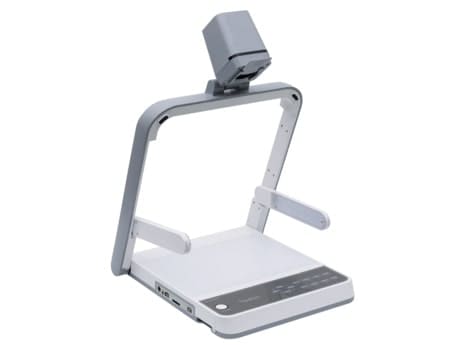

Visual presenter, also known as a document camera, is a device used to display and project physical objects, documents, or images onto a projection screen or interactive panel. It typically consists of a camera mounted on an adjustable arm or stand, with built-in lighting and zoom capabilities. Visual presenters are commonly used in classrooms, conference rooms, and offices to showcase items such as books, documents, 3D objects, handwritten notes, and even live demonstrations.
Visual Presenter is connected to a projector, computer, interactive whiteboard or interactive panel, allowing the captured images to be displayed in real-time to an audience. Visual presenters are versatile tools for presentations, teaching, training, and collaboration, as they enable users to share physical materials with a larger audience without the need for making photocopies or passing around objects. Additionally, our Visual Presenters offer features such as annotation, image storage, and video recording to enhance their functionality. Document Visual Presenter is either installed on tabletop surface or integrated within Digital Podium.
By integrating a visual presenter into a Digital Podium, presenters can seamlessly switch between different presentation materials, including documents, objects, and multimedia content, all from a single control interface.
Image Sensor | 1/3 Inch Digital Image Sensor |
Camera | 8 MP |
Zoom | 22x-26x Optical, 10x Digital Zoom |
Make | VAC/Vantage |
TV lines | ≥ 1200 TV Lines |
Resolution | XGA, 720P, SXGA,1080P |
Frame Rate | 30 fps |
Video Focus | Auto |
White Balance | Auto |
Inbuilt Storage | 32 Images |
Lamp / Lights | Built-in LED on camera head, 2 Side LED Lights and base Light |
USB Image Transmission | USB 2.0 (480 Mbps) high speed transmission |
Image Effects | Freeze/Mirror Image, Positive/Negative |
USB Output | USB 2.0 |
Input | HDMI x 1, VGA x 1, Audio x 1, Mic |
Output | HDMI x1, VGA x1, AUDIO*1, VIDEO*1, RS232 |
Control | RS232 |
Remote Control | Remote Control and Touch Panel/Pad |
Power supply | 12V DC power adapter |
Weight | -N.W: 3.5KG , G.W: 5KG |
Dimension | 410*370*550mm(Open), 470*370*135mm(Close) |
Package | 415*180*530mm |
