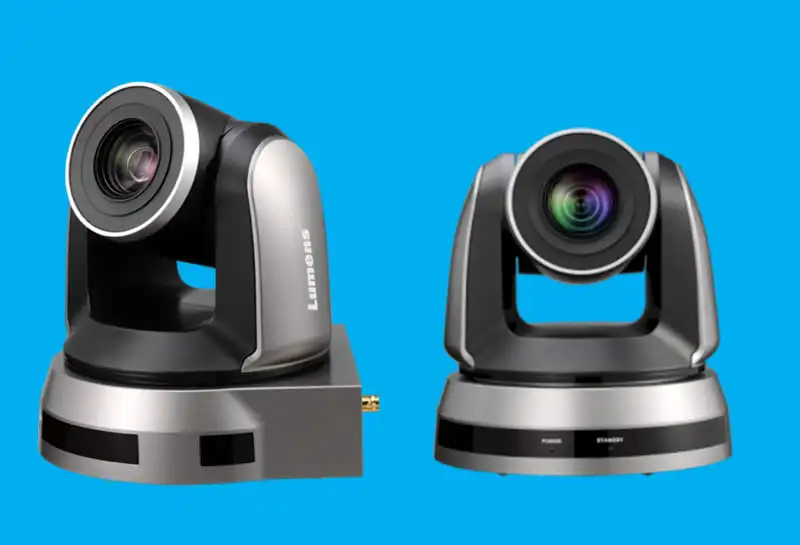

Lumens VC-A51P is an advanced PTZ camera which is ideal for conference production, lecture capture, houses of worship and live events. The VC-A51P supports live production workflows thanks to its HDMI and SDI connectivity and is compliant with all major live streaming services including YouTube and Facebook, and learning platforms such as Panopto and Kaltura.
With 1080p resolution, the VC-A51P can be used in demanding AV or broadcast environments. Its 1/2.8" 2.16MP Sony CMOS sensor delivers faithful colors and excellent levels of detail even in low light conditions. Pictures are captured with a natural look whether projected onto a big screen or streamed to mobile users.
Lumens' autofocus system is fast and accurate, and able to track subjects in motion. This level of automation gives users the confidence to concentrate on framing the picture, leaving the camera to deliver sharp images without user input.

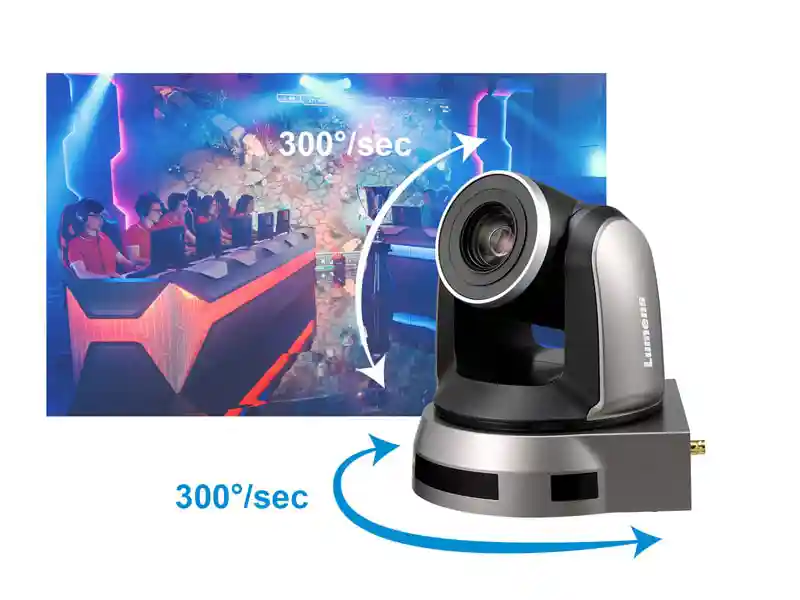

With high precision motor control, the VC-A51P can run at a speed required by the user. At very low speeds, the camera remains stable without juddering. At high speeds, the smoothness of the motors avoids distracting image blur.

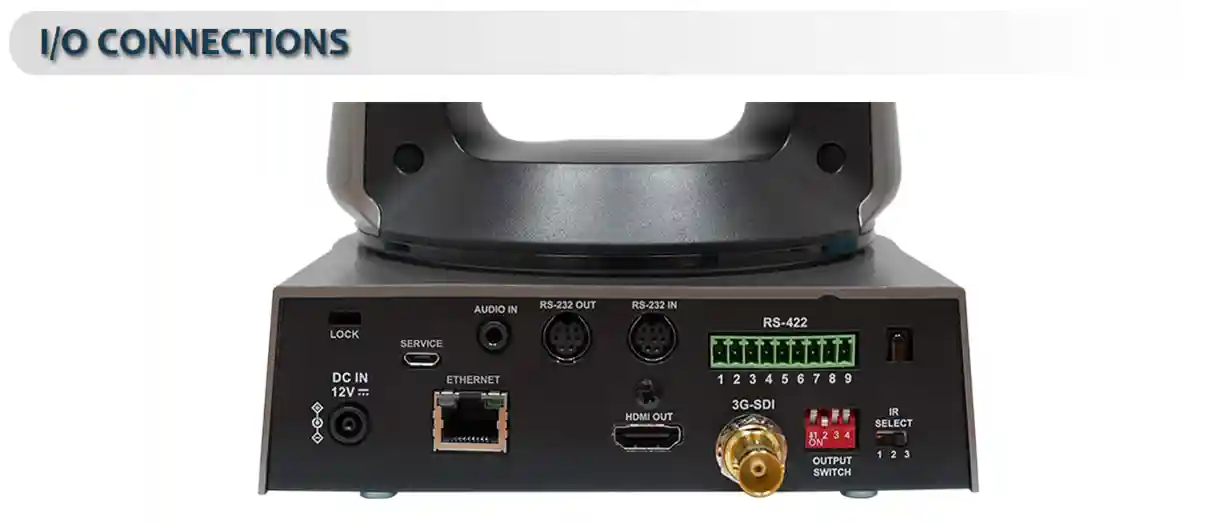

Equipped with DC power and Power over Ethernet (PoE+), RS-232, RS-422 and Ethernet control interfaces, and featuring live video-over-IP monitoring, The VC-A51P gives users a tremendous level of flexibility. The camera can be controlled and monitored locally or remotely over an IP network. Its versatility means that it is ready for all the production challenges that you face.
| Sensor | 1/2.8" 2.16MP CMOS |
| Optical Zoom | 20x |
| Video Format | 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 fps, 1080i 60 / 59.94 / 50 fps, 720p 60 / 59.94 / 50 fps |
| Video Output (HD) Interface | 3G-SDI, HDMI, Ethernet |
| Panning Angle | -170° ~ +170° |
| PoE | PoE+ (IEEE802.3at) |
| Tilting Angle | +90° ~ -30° |
| 3D NR | Yes |
| Aperture | F1.6 ~ F3.8 |
| Focal Length | 5.33mm ~ 110mm |
| Shutter Speed | 1/1 ~ 1/10,000 sec |
| Minimum Object Distance | 1.5m (Wide / Tele) |
| Video S/N Ratio | > 50dB |
| Minimum illumination | 1.0 lux (F1.6, 50IRE, 30fps) |
| Focus System | Auto, Manual |
| Gain Control | Auto, manual |
| White Balance | Auto, manual |
| Exposure Control | Auto, manual |
| Image Flip | Yes |
| Preset Positions | 128 |
| AR / VR Systems | FreeD |
| Tally Light | Yes |
| WDR | Yes |
| IP Compression | H.264 / MJPEG |
| Camera Control Protocol | VISCA / VISCAIP / PELCO D / ONVIF |
| IP Protocol | TSP / RTMP / RTMPS / MPEG-TS / SRT |
| IP Stream | First: H.264 1080p 60fps Second: H.264 / MJPEG D1 30fps |
| IP Protocol | TSP / RTMP / RTMPS / MPEG-TS / SRT |
| IR Pass-through | Yes |
| IR Receiver | Yes |
| IR Remote Control | Yes |
| Audio Input | Line In / MIC In |
| Audio Output | Ethernet, SDI and HDMI |
| Power consumption | PoE: 18.5W DC In: 17W |
| Weight | 4.4 lbs (2 kg) |
| Dimensions (W x D x H) | 6.9" x 7.3" x 7.3" (174 x 186 x 187 mm) |
