The Lumens DC172 Ladibug™ document camera comes with an unbeatable ultra-clear 4K UHD output resolution with 30 frames per second and can demonstrate remarkably detailed images of any object in real-time without delays. The DC172 features image rotation and allows users to rotate the image for 90/180/270 degrees, plus flip/ mirror images quickly. It also supports external storage via USB Flash drive, and a unique HDMI pass-through feature which can pass an image from a PC(NB) directly to a display. With our exclusive PC-free solution, it can carry out image annotation and control menu settings directly with a mouse. The unique joint-free gooseneck enables a 360° viewing angle and is easy-to-use. Press one button to capture, record, playback the lecture material and get the perfect image quality every time. The Lumens DC172 makes presentations and teaching more interactive and memorable for students in a 1:1 collaborative learning environment.
The Lumens® DC172 Ladibug™ document camera provides ultra-clear 4K 30fps output resolution, supports 1080p, 720p and XGA resolutions. It can demonstrate remarkable detailed images of any object in real-time without delays and enhance the interaction between instructor and students.

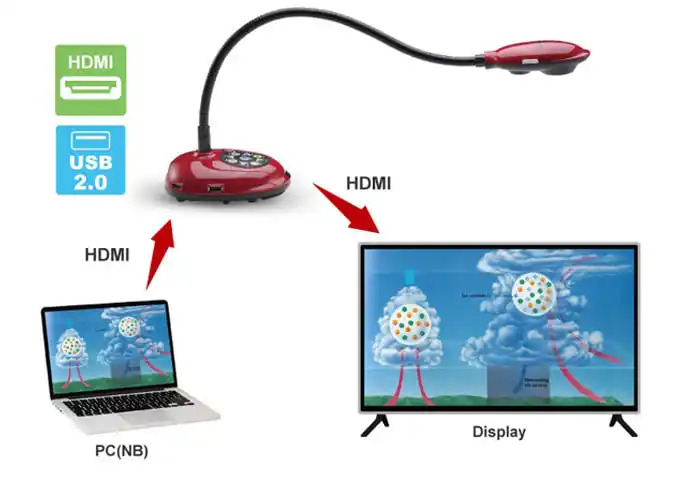

The DC172 is equipped with HDMI and USB outputs. HDMI pass-through is a handy function that allows you to pass your laptop or other sources through the DC172 to the display without an additional switcher.

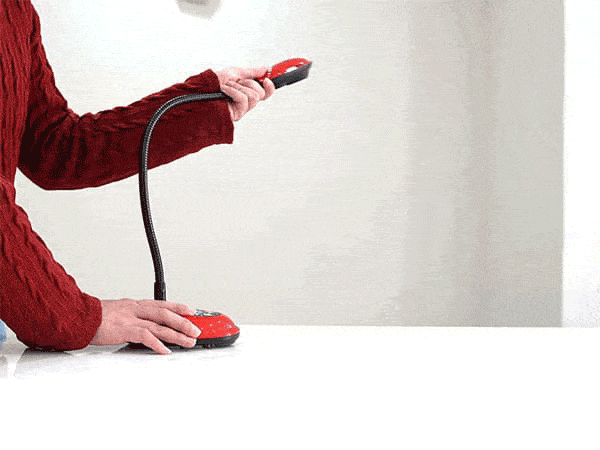

The unique joint-free gooseneck design lets users twist, bend and stretch the arm to enable a 360° view of your object.
| Image Sensor | 1/3" 13M CMOS Color Image Sensor |
| Output Resolution | XGA, 720p, 1080p, 4K (2160p) |
| Frame Rate | XGA / 720p / 1080p : 60fps 2160p : 30fps |
| Close-up | 5 cm |
| Zoom |
2x for 1080p (1920x1080) 3x for 720p (1280x720) 2.8x for XGA (1024x768) |
| Digital Zoom | 30x |
| Mechanical Zoom | 6.8x |
| Shooting Area Max. | 420mm x 316mm (16.5"x12.4") |
| Lamp | LED lamp on camera head |
| Arm | Joint-free Gooseneck |
| Power | External Power Supply, 100-240 VAC |

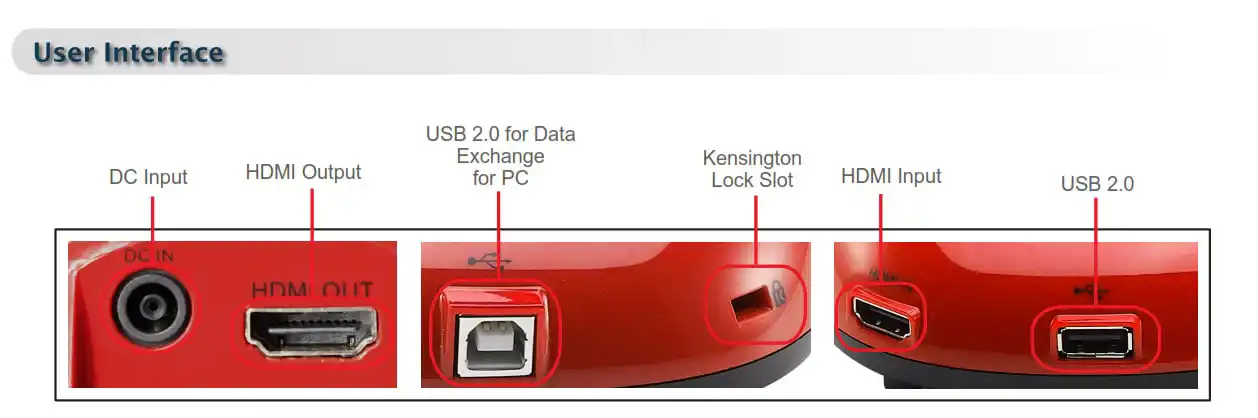

| Input | HDMI x1 |
| Output | HDMI x1, USB 2.0 |
| Control | USB |
| Built-in Microphone | Yes |
| Memory Slot | USB Flash Drive (up to 256GB) |
| Built-in Memory | 100 pictures |
| Auto Tune | Yes, one button for optimization image |
| Focus Mode | Auto / Manual |
| Image Mode | Photo, Text, Film, Slide, Microscope |
| Image Rotation | 0° / 90° / 180° / 270° / Flip / Mirror |
| Standalone AV Recording | Yes |
| Video/Audio Recording | One touch button records image and sound synchronously |
| HDMI pass-through | Active pass-through, up to 2160p 60 Hz |
| Onboard annotation | Yes |
| Freeze, Pan, PIP, Mask / Spotlight, Lock Down Mode, Auto Erase | Yes |
| USB Image Transmission | USB 2.0 (480 Mbps) high speed transmission |
| Image Capture | Single or continuous capturing |
| Driver | UVC / UAC |
| Free Lumens Software | Supports PC Windows 10, 8, 7, Mac OS X, Chrome OS |
| Anti-Theft | Kensington anti-theft lock device |
| VESA Mount | Yes |
| Included Accessories | Power adapter, power cable, USB cable, HDMI cable, Microscope adapter |
| Power Consumption | 8W (Maximum) |
| Dimensions: (LxWxH) | Folded : 236x106x280 mm, Open : 350x106x380 mm |
| Weight | 2.8 lbs (1.3 Kg) |
