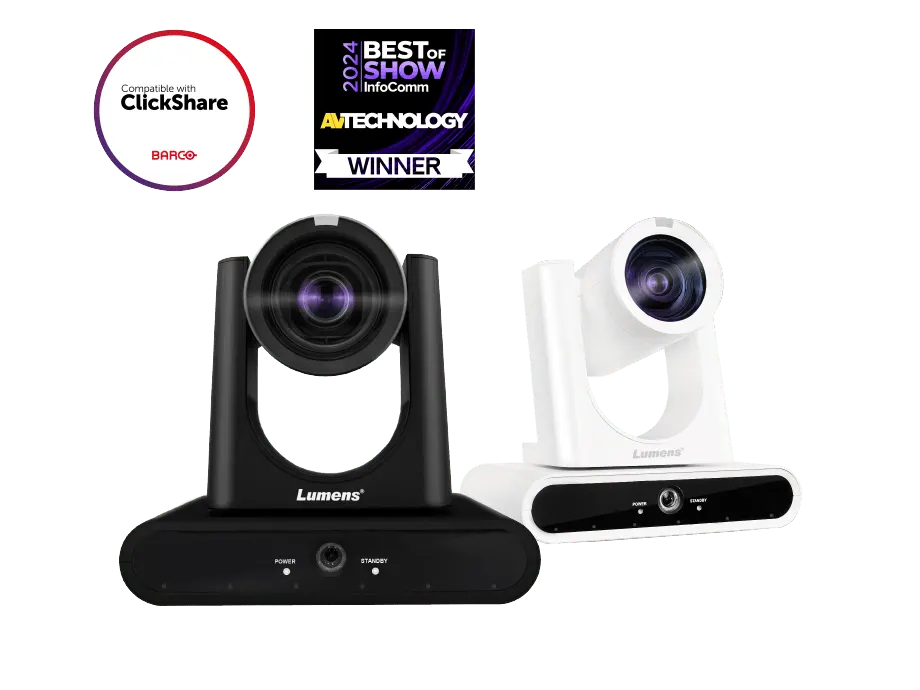

VC-TR60A is a multi-talented AI-powered PTZ camera. Advanced features include speaker tracking, motion tracking, auto-framing, dual IP stream output and picture-in-picture output over HDMI and USB. Its 4K sensor and a 12x zoom provides excellent video quality output simultaneously over IP, HDMI & USB. The PTZ performs superbly in low light and delivers impressive auto-focusing and auto-exposure performance.
VC-TR60A incorporates an array of directional sound sensors that detect the location of active human voices. The camera head moves and zooms to shoot the current speaker, re-framing as other voices enter the discussion. VC-TR60A supports a reference audio input (USB or line in). This eliminates remote side audio interference, ensuring precise and reliable speaker tracking of speakers within the room.

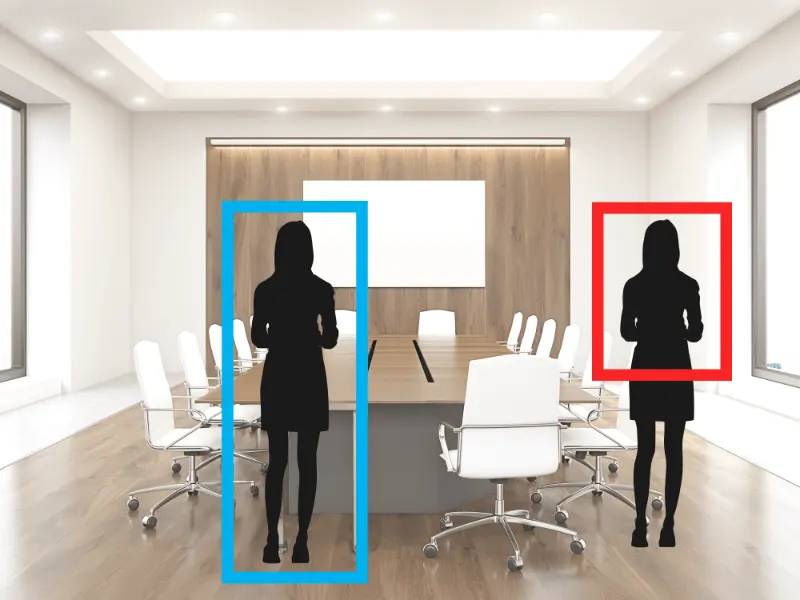

VC-TR60A features sophisticated auto-tracking and framing modes. Its intelligent human detection algorithms deliver smooth tracking for conferences, presentations, meeting rooms, classrooms and studios.
VC-TR60A can combine the two video images in a picture-in-picture display with output over HDMI and USB. This allows the audience to watch a composite video that incorporates both the wide-angle view and the tight shot. This function can be activated independently, or at the same time as running motion or speaker tracking.

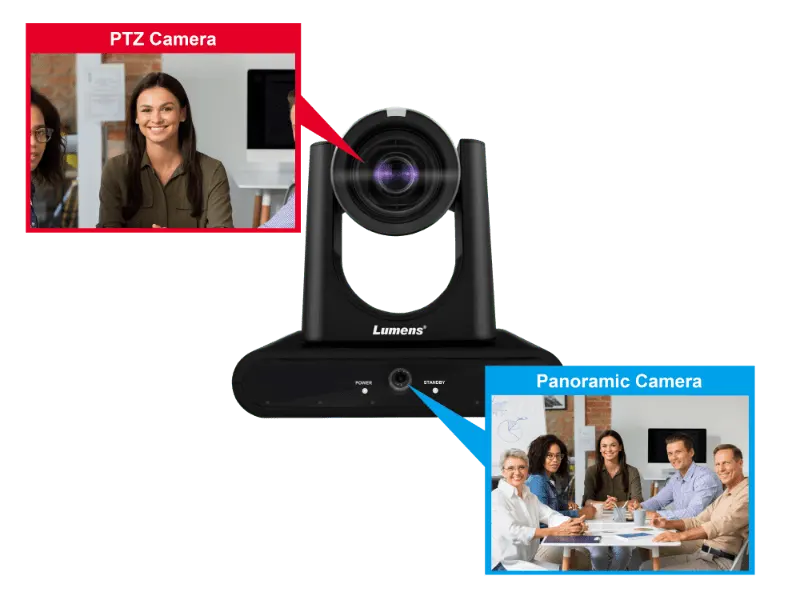

VC-TR60A generates two video streams from its panoramic fixed camera and the robotic zoom head. These can be delivered over IP into a media processor, IP-based production software or a lecture capture system to provide two camera angles from a single unit.
| Sensor | 1/2.8″ 8.51M |
| Optical Zoom | 12x |
| Video Format |
2160p : 60 / 50, 2160p : 30 / 25, 1080p : 60 / 50 / 30 / 25, 720p : 60 / 50 / 30 / 25, 1080i : 60 / 50 |
| Video Output (HD) Interface | HDMI / Ethernet / USB |
| Digital Zoom | 8x |
| PoE | PoE+ (IEEE802.3at) |
| Horizontal Viewing Angle | 81° |
| Vertical Viewing Angle | 50.5° |
| Diagonal Viewing Angle | 88.9° |
| Focal Length | 3.4 ~ 43.3 mm |
| Shutter Speed | 1/25 ~ 1/10,000 sec |
| Minimum Object Distance | Tele:1.5m / Wide:1m |
| Video S/N Ratio | > 50dB |
| Minimum illumination | 0.5Lux (F1.8, AGC ON) |
| Focus System | Auto, Manual |
| Gain Control | Auto, manual |
| White Balance | Auto, manual |
| Exposure Control | Auto, manual |
| Image Flip | Yes |
| Preset Positions | 256 |
| Pan & Tilt Panning Angle | +170° ~ -170° |
| Panning Speed | 0.1°~100°/sec |
| Tilting Angle | +90° ~ -30° |
| Tilting Speed | 0.1°/s ~ 60°/sec |
| IP Stream | PTZ : 2160p 30 / 720p 30, Panoramic : 1080p 60 |
| PoE | PoE+ (IEEE802.3at) |
| IP Stream |
First: H.264 1080p 60fps Second: H.264 / MJPEG D1 30fps |
| Audio Output | Ethernet / USB / HDMI |
| Audio Input | Line In |

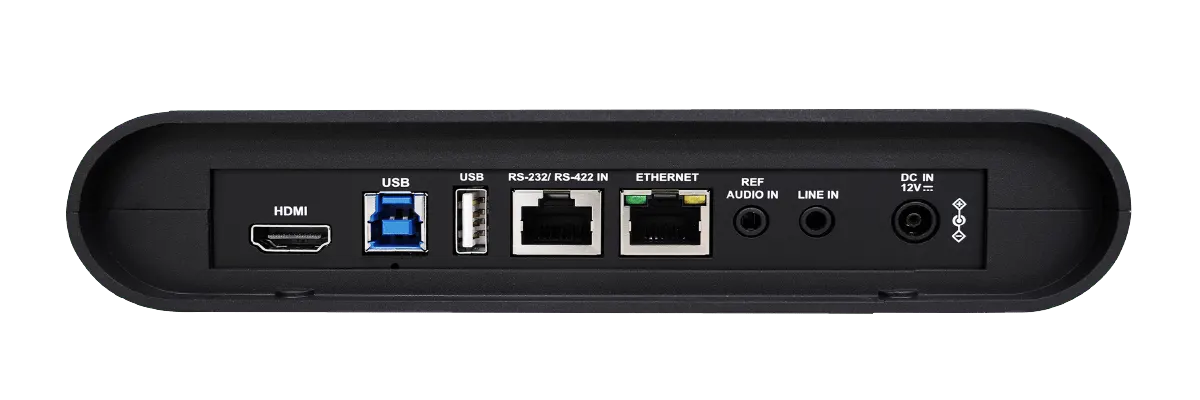

| Camera Control Interface | RS-232 / RS-422 / Ethernet / USB |
| Aperture | F2.0 |
| General DC In | 12V +/- 20% |
| UVC | Yes |
| Network IP Protocol | HTTP / RTSP / RTMP / RTMPS / SRT |
| Power consumption |
PoE: 18.5W DC In: 17W |
| Weight | 1.5 kg |
| Dimensions (W x D x H) | 190 ×185 ×144 mm |
