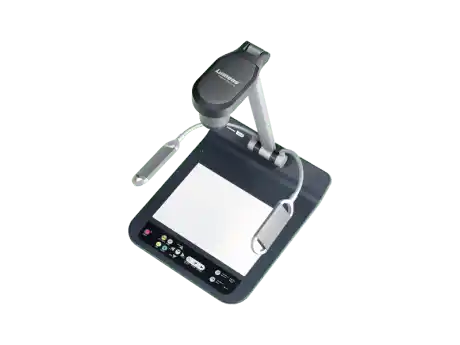

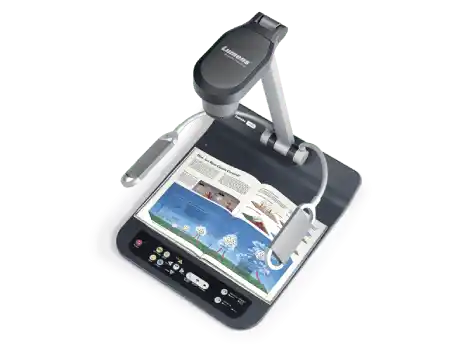

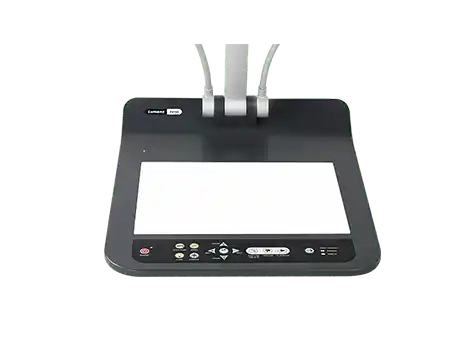

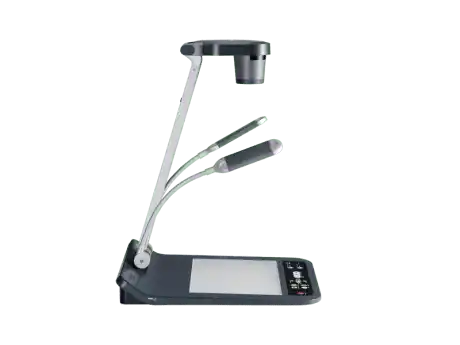

Introducing the Lumens PS753: a desktop document camera that takes zooming to new heights, offering an impressive 300x magnification capability. Powered by a professional Sony imaging sensor, this document camera ensures that every detail is captured in vivid color and precision, whether you're reproducing documents or showcasing 3D objects. With its versatile connectivity options including HDMI, VGA, USB, and IP outputs, the PS753 effortlessly connects to computers, displays, and networks. It's an ideal solution for lecture halls and professional meetings, where impeccable image quality is non-negotiable. Whether you're projecting onto large screens or focusing on intricate details, this camera is designed to meet the highest standards of resolution and clarity.
Equipped with a 4K camera and an impressive zoom function, the PS753 excels in presenting highly detailed visuals on screens and projectors. The cutting-edge Sony sensor it incorporates ensures the faithful real-time reproduction of textures and colors, while also providing excellent image noise management.

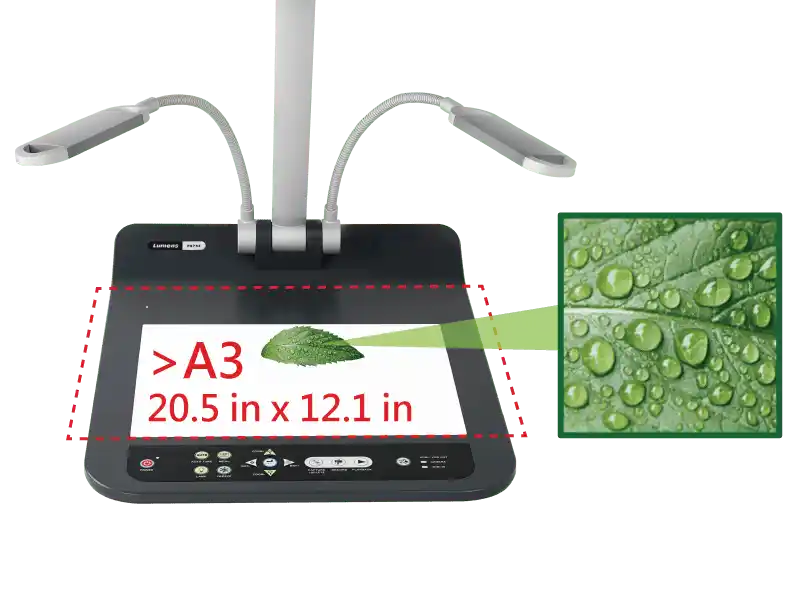

The Lumens PS753 stands out for its exceptional versatility, with the ability to accurately replicate documents and objects surpassing A3 dimensions (over 20.5" x 12.1" / 50cm x 30cm). This remarkable capability grants presenters and demonstrators a level of flexibility unmatched by less potent visualizers. When a close-up view is required, the 300x zoom comes into play, adeptly capturing the most intricate details. For optimal adaptability, the ePTZ functionality facilitates seamless adjustments to the camera's angle and position, honing in on specific areas of interest. This ensures a tailored and exact image capture every time, meeting your precise requirements with unwavering accuracy.
Equipped with dual lights on flexible gooseneck mounts, the Lumens PS753 ensures impeccable illumination from above for any object, eliminating unwanted glare and reflections. Additionally, the visualizer features a backlit LED light beneath the display area, effectively prepared to illuminate materials such as photo negatives and X-rays from underneath.
Even though it has advanced abilities, the Lumens PS753 is really simple to operate. With Auto-Tune, the camera gets adjusted quickly to show a clear picture with the right colors. There's also an annotation tool that lets you draw on the screen's image without needing extra software. It's quick, easy, and convenient. You can use the included Ladibug software for more control over images, and you can connect with people far away using popular video conferencing apps like Zoom, Meet, Skype, Teams, or WebEx.
The PS753 is very easy to install. Power is provided over your Ethernet network (PoE) without additional power supplies. The system can output live pictures over a connection that suits the way you work: it links directly to a display or projector over HDMI or VGA or streams images over your network.
| Camera | |
|---|---|
| Sensor | 1/2.8" 8M CMOS Color Image Senso |
| Total Pixels | 8.6 MP |
| Total Zoom | 300x (max.) |
| Zoom | 30x |
| Digital Zoom | 30x (max.) |
| Output Resolution | XGA / 720p / 1080p / 2160p |
| Frame Rate | 30 fps for all resolution, 60fps for 1080p and 720p |
| Shooting Area Max. | 522 x 308 mm (20.5" x 12.1") |
| Sharpness | MTF 1700 Lines (at 2160p) |
| Focus Mode | Auto / Manual |
| Image Rotation | 0° / 90° / 180° / 270° /Flip / Mirror |
| Output Interface | VGA x 2, HDMI, C-Video |
| Lamp | 1. Dual LED Side Lamps supported by a
gooseneck 2. Built-in A4 size (297 x 210 mm) LED Backlight |
| Arm | Mechanical Arm |

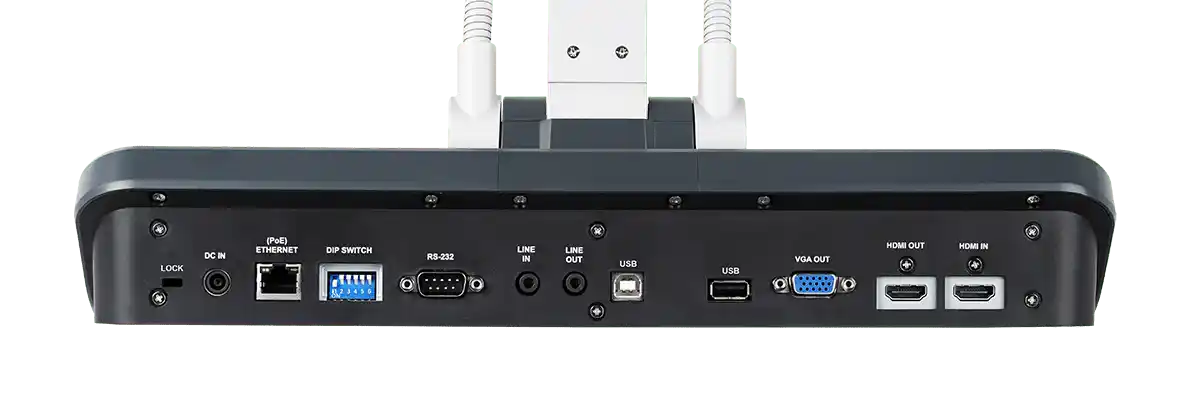

| Input & Output | |
| Power Supplied | External, 12V DC Adapter (100~240 VAC) / PoE+ |
| Input | HDMIx1 (Support 4K), HDMI Pass-Through |
| Output | HDMI2.0 x1 / VGA x1(up to 1080p) / USB 2.0 / IP Streaming |
| Control | RS-232 / USB / Ethernet |
| USB | |
| USB Image Transmission | USB 2.0 (480 Mbps) |
| Driver | UVC / UAC |
| USB Video Format | H.264 / MJPEG / YUV |
| USB Host | USB 2.0 Type-A x1 (For Mouse, USB Flash Drive) |
| Audio | |
| Built-in Microphone | Yes |
| Audio In | Built-in Mic, Line In (3.5mm) |
| Audio Out | Line Out (3.5mm) |
| Network | |
| Ethernet | RJ-45 ( PoE+, IEEE802.3at) |
| IP Stream Format | RTSP(H.264) |
| Storage | |
| Memory Slot | USB 2.0 Flash Drive, Expandable to 4TB |
| Built-in Memory | 100 JPEG |
| Features | |
| Auto Tune | Yes, One Button for Optimization Image |
| Video / Audio Recording | One touch Button records image and sound synchronously |
| Onboard annotation | Yes, Support USB Mouse |
| Image Mode | hoto / Text / Film / Slide / Microscope |
| Freeze | Yes |
| Pan | Yes |
| Picture in Picture (PIP) | Yes |
| Mask / Spotlight | Yes |
| Lock Down Mode | Yes |
| Auto Erase | Yes |
| Image Capture | Single or Continuous Capturing |
| Standalone AV Recording | Yes, H.264 1080p |
| Ladibug™ Software | Support Windows 11, 10, 7 / Mac OS X / Chrome OS |
| General | |
| Anti-Theft | Kensington Anti-Theft Lock Device |
| VESA Mount | Yes, 75mm x 75mm |
| Included Accessories | Power Adapter, Power Cable, USB Cable, HDMI Cable |
| Power Consumption | DC In : 16W PoE : 18W |
| Dimensions: (WxHxD) | Folded : 15.2” x 6” x 22.3”
(385 x 152 x 566 mm) Open : 15.2” x 23.1” x 18.3” (385 x 588 x 466 mm) |
| Weight | 12.3 lbs (5.6 kg) |
