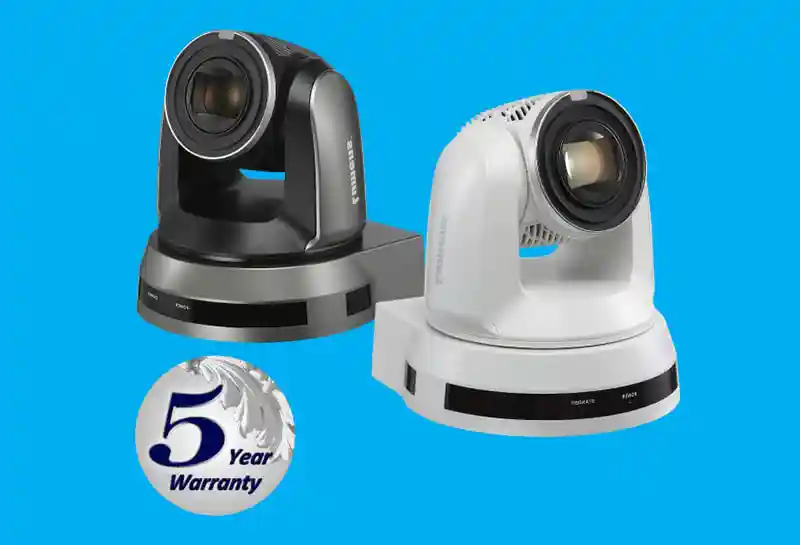

The Lumens VC-A61P UHD Pan / Tilt / Zoom (PTZ) IP camera is equipped with a professional 1 / 2.5 inch image sensor with 4K Ultra HD output at 30fps. The power is supplied through 12V input or the Power over Ethernet (PoE+) providing an economical and easy solution. The superior 30x optical zoom lens, excellent white balance, and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness in a room. The VC-A61P has different interfaces such as Ethernet, HDMI and 3G-SDI. It supports live broadcasting with H.264 / H.265 format. These features not only allow for simultaneous image outputs, they also result in the best image quality and is compatible with all types of video equipment. The camera covers a wide shooting angle and achieves high-speed, quiet, and precise positioning with smooth PTZ operations. The VC-A61P is applicable for lecture recording, video conferencing, and live broadcasting.
4K and 1080p resolution choices make the VC-A61P more flexible for different shooting purposes. With its 4K UHD ultra-clear video quality, you can enjoy detailed, crystal-clear views even in the low light.

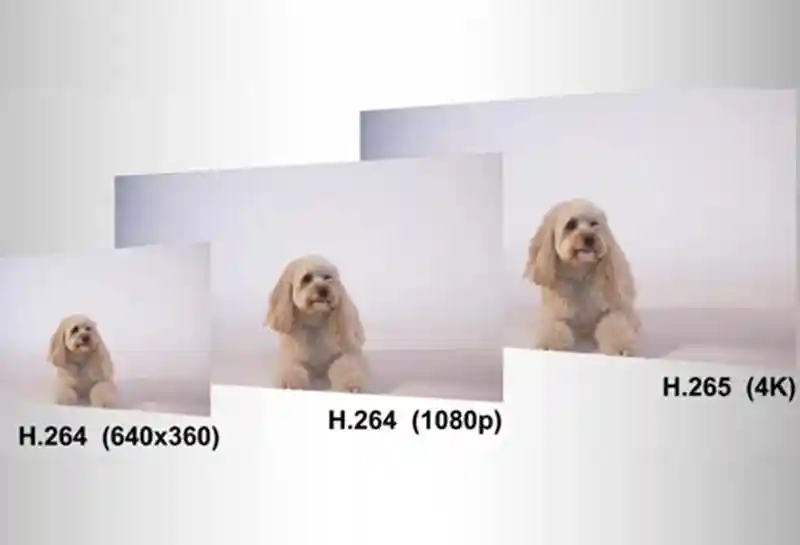

With triple stream technology, the VC-A61P provides H.265 / H.264 multiple streams that tailored for your network environment.
Supports SRT(Secure Reliable Transport) protocol that optimizes a streaming performance.
| Sensor | 1/2.5" 8MP CMOS |
| Optical Zoom | 30x |
| Video Format | Resultion : 4K*/1080p/720p Frame Rate : 59.94/50/29.97/25 *So far 4K can only support 29.97/25 |
| Video Output (HD) Interface | 3G-SDI, HDMI, Ethernet *3G-SDI only supports maximum 1080p 59.94/50 |
| Panning Angle | -170° ~ +170° |
| Panning Speed | 300°/sec |
| Tilting Angle | +90 ~ -30° |
| 3D NR | Yes |
| Aperture | F1.6 ~ F3.4 |
| Focal Length | 4.6mm ~ 135mm |
| Shutter Speed | 1/1 ~ 1/10,000 sec |
| Minimum Object Distance | 1.5m (Wide/Tele) |
| Video S/N Ratio | > 50dB |
| Minimum illumination | 0.1 lux (F1.6, 50IRE, 30fps) |
| Focus System | Auto, Manual |
| Gain Control | Auto, manual |
| White Balance | Auto, manual |
| Exposure Control | Auto, manual |
| Image Flip | Yes |
| Preset Positions | 256 |

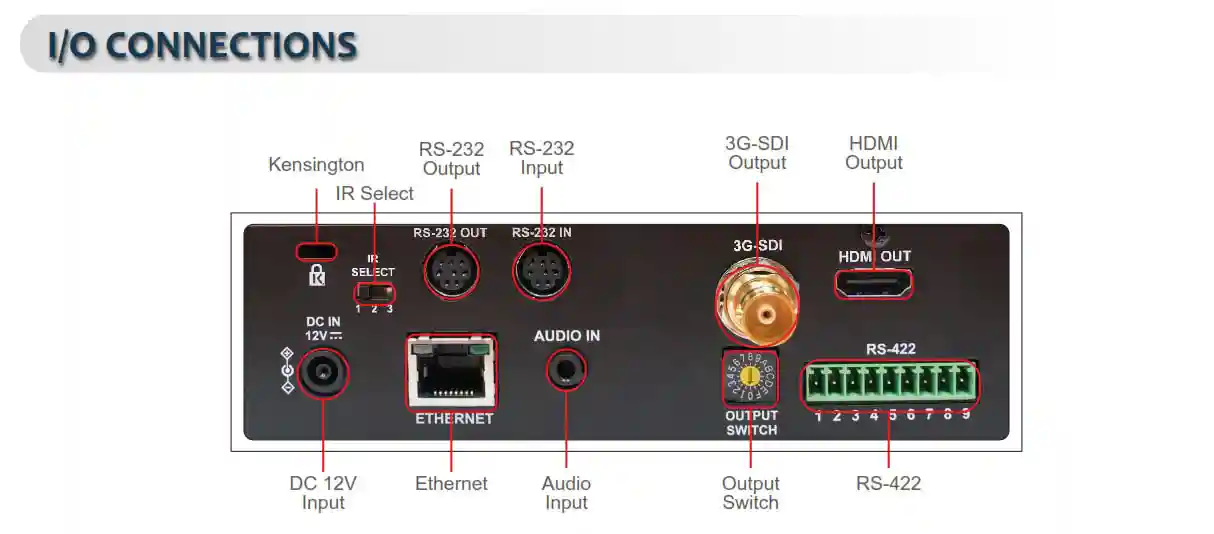

| Camera Control Interface | RS-232 / RS-422 / Ethernet |
| Camera Control Protocol | VISCA / PELCO D / ONVIF |
| Video Stream | RTSP / RTMP / MPEG-TS |
| Video Stream | RTSP / RTMP / MPEG-TS |
| Multiple Video Stream | H.265 4K 30fps, H.264 1080p 60fps, H.264 640x360 30fps |
| Video Compression | H.265 / H.264 |
| PoE | PoE+ (IEEE802.3at) |
| Audio Input | Line In/MIC In , Phone Jack 3.5mm x1 |
| Audio Output | Ethernet / SDI / HDMI |
| IR pass-through | Yes |
| IR receiver | Yes |
| IR remote control | Yes |
| DC In | 12V +/- 20% |
| Power consumption | PoE : 18W, DC In : 16W |
| Weight | 2 kg (4.4 lbs) |
| Dimensions (W x D x H) | 174 x 186 x 187 mm (6.9” x 7.3” x 7.3”) |
| Package Contents | Instruction for installation, Remote Control, Power Cord, Power Adapter, RS-422 Connector, Metal Plate A / B, M3 Screws |
