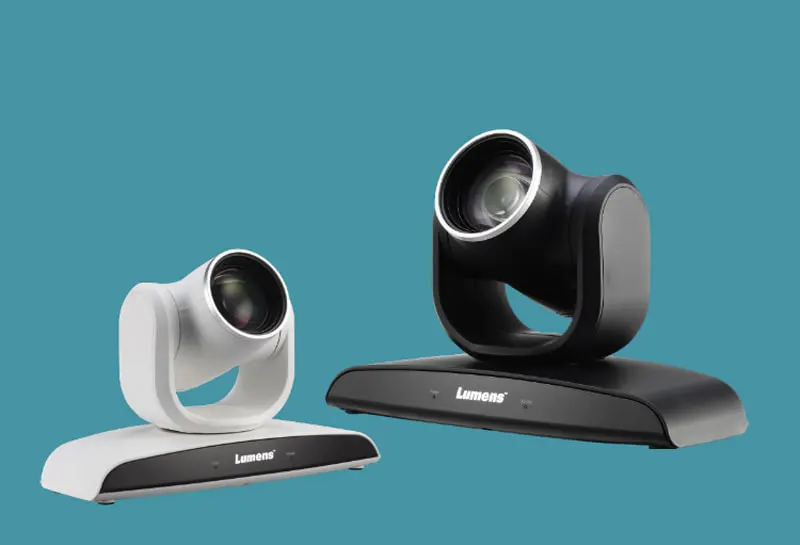

The Lumens™ VC-B30U HD Pan/Tilt/Zoom (PTZ) camera has USB 3.0 and HDMI video output interface. It is equipped with a 1/2.8 inch image sensor with Full HD 1080p output resolution and a high dynamic image of 60 fps. The superior 12x optical zoom lens, excellent white balance, and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness in a conference room. The camera covers a wide shooting angle and achieves high-speed, quiet, and precise positioning with smooth PTZ operations. There are up to 128 preset setting movements and stable remote controlling for displaying effective and efficient presentations. The VC-B30U is applicable for videoconferencing in a huddle room or a medium size conference room.

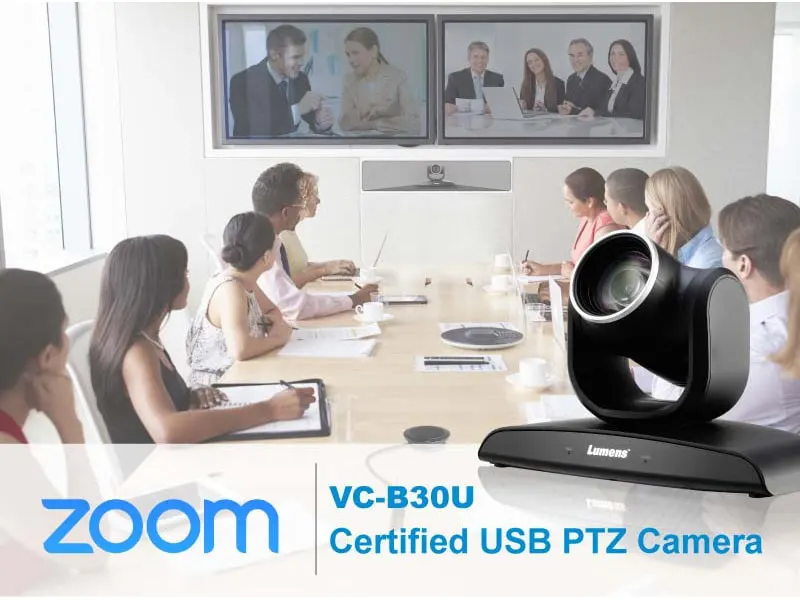

With the Lumens Zoom Certified USB Camera you can enjoy a hassle-free conference meeting with the full control of the PTZ camera function, including preset, pan, tilt, zoom on Zoom interface.
USB 3.0 Plug & Play and compatible with Windows, Linux, MAC OSX, Chrome OS.
Panoramic 72°(H) 80°(D) Viewing Angle & 12x Optical Zoom that helps users achieve a wider viewing area.
The VC-B30U can work seamlessly with any software running on any OS that supports USB 3.0 devices.

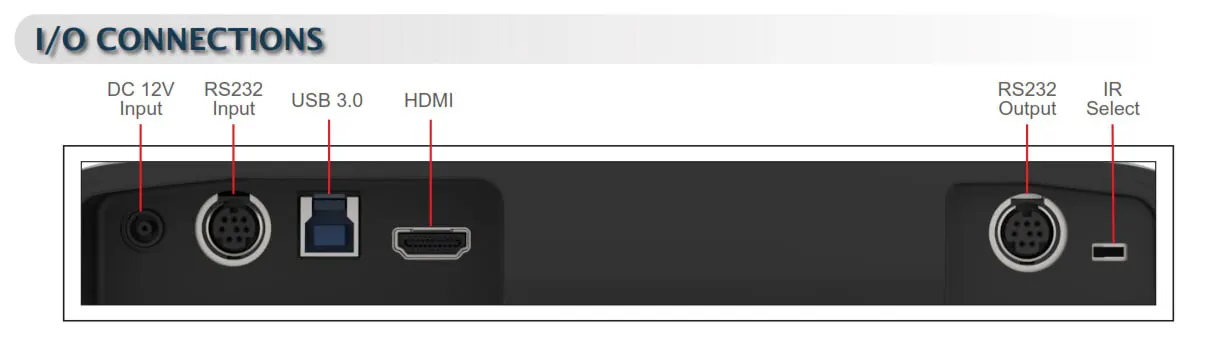

The VC-B30U has one USB connection that can work with any videoconferencing software. One HDMI can be used for the second display regarding viewing the image of one of the speakers.
The VC-B30U uses standard UVC drivers. There is no need to install special USB drivers. USB 3.0 is 10 times faster than the USB 2.0 standard and it features low latency and non-compress output.
Easy control like Pan, Tilt, Zoom and settings by Lumens USB PTZ camera controller software. supports Windows & MAC OS.
The VC-B30U has up to 128 preset settings for pan, tilt, zoom, focus, exposure, and white balance modes for more effective and efficient video recording.
The VC-B30U has a wide shooting area (pan angle from -100° to +100° ; tilt angle from -30° to +30°), as well as quiet, fast, and precise positioning movements.
The camera’s settings and PTZ control functions can be performed remotely at any location and at high communication speeds via the RS-232 interface and supports Daisy-Chain.
The VC-B30U has a panoramic 72°(H) 80°(D) Viewing Angle that helps users achieve a wider viewing area.
| Sensor | 1/2.8” 2 MP CMOS |
| Optical Zoom | 12x |
| Digital Zoom | 12x (HDMI Only) |
| Video Format | HDMI: 1080p 60/50 fps ; 720p 60/50 fps USB: 1080p 30/25 fps ; 720p 30/25 fps |
| Video Output (HD) Interface | HDMI, USB 3.0 |
| Viewing Angle | 72°(H) 80°(D) |
| Panning Angle | +100° ~-100° |
| Panning Speed | 100°/Sec |
| Tilting Angle | +30° ~ -30° |
| Tilting Speed | 100°/Sec |
| Aperture | F1.6 ~ 2.8 |
| Focal Length | f = 3.92 ~ 47.32 mm |
| Shutter Speed | 1/1 ~ 1/10,000 sec |
| Minimum Object Distance | 500(Wide) ~ 1500(Tele) mm |
| Video S/N Ratio | > 50dB |
| Minimum illumination | 1.6lux (F1.8, 50IRE, 60fps) |
| Focus System | Auto, Manual |
| Gain Control | Auto, manual |
| White Balance | Auto, one-push, manual |
| Exposure Control | Auto, manual |
| WDR | Yes |
| 3D NR | Yes |
| Image Flip | Yes |
| Preset Positions | 128 |
| Camera Control Interface | VISCA / UVC |
| Video Stream | YUV422 / MJPEG |
| IR pass-through | Yes |
| IR receiver | Yes |
| IR remote control | Yes |
| Power consumption | < 13W |
| Weight | 2.9 lbs (1.3 kg) |
| Dimensions (W x D x H) | 10.6” x 4.8” x 6.2”(267.8 x 123 x 156.1 mm) |
| Package Contents | Instruction for installation, Remote Control, Power Cord, Power Adapter, USB3.0 cable, HDMI cable |
