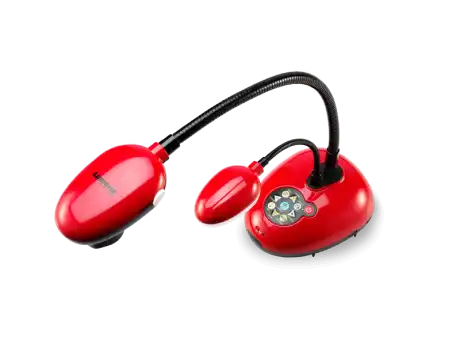

The Lumens™ DC193 document camera boasts an impressive 20x zoom capability and features a professional image sensor that delivers vibrant colors in Full HD at 1080p output resolution, achieving a smooth streaming image in real-time with a frame rate of 30 fps. With internal memory capable of storing up to 240 images and expandable to 4TB via a USB flash drive, it ensures ample space for content storage. The one-touch video recording button allows for stand-alone presentations, eliminating the need for a PC.

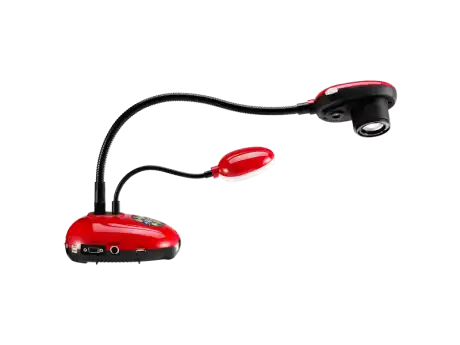

Equipped with a jointless and highly flexible gooseneck, the DC193 offers a 360° viewing angle, enabling detailed observation of objects from as close as 1.2 inches / 3 cm. The adjustable side lamp design effectively prevents reflections. A single auto-tune button guarantees optimal image quality with each use. The Lumens DC193 stands out as a high-definition multimedia document camera that enhances the interactive nature of presentations and teaching.
Equipped with a new professional image sensor, this provides more sharpness, low noise and vivid color reproduction. The DC193 also supports Full HD, 1080p and HDMI interface for the highest quality digital video transmission and simple system integration
The DC193 has a built-in microphone, USB flash drive (expandable to 4TB) and just one button to record video and audio synchronously onboard, directly, without a PC.
Most document cameras require a PC to carry out image annotation. Lumens™ has developed a PC-free solution, using a USB wired or wireless mouse to enable the image to be directly edited.
A stable power supply provides a constant image and data flow.

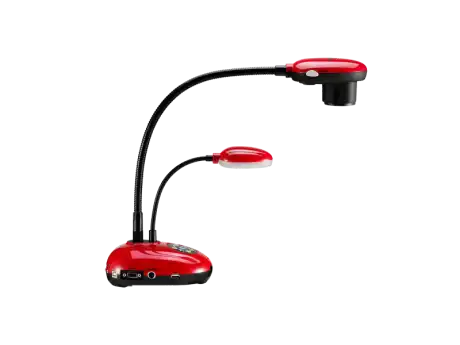

With the Lumens™ side lamp gooseneck design, the direction of the light source can be adjusted according to the environment in order to prevent reflections.
An Auto Tune button adjusts the clarity, brightness, and color according to the actual environment automatically. A new image process technology speeds up its function so that the image adjustment becomes more efficient.
With 30fps capture every tiny movement during playback without delays.

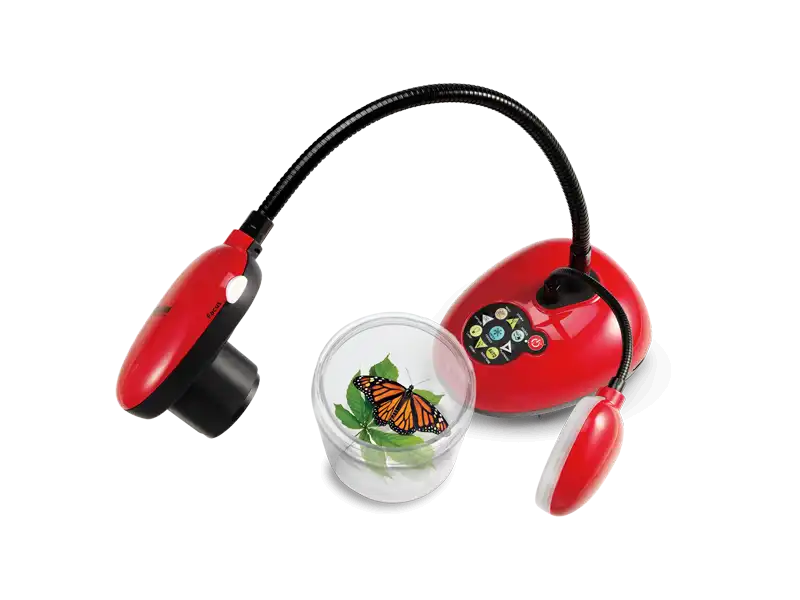

Highly flexible and joint-free gooseneck design ensures smooth quality without vibration, easy to use, and a 360° viewing angle.
| Image Sensor | 1/3 CMOS Color Image Sensor |
| Total pixels | 3.25MP |
| Optical Zoom | 20x |
| Digital Zoom | 12x |
| Mechanical Zoom | 10x |
| Close-up | 2cm (0.78”) |
| Shooting Area Max. | 420x318mm (16.5” x 12.5”) |
| Output Resolution | XGA, SXGA(1280x960), WXGA, 1080p |
| High Color Reproduction | ΔE*ab (mean): 14.8 |
| SNR | 51dB |
| Sharpness | MTF 937 line |
| Frame Rate | 30fps |
| Lamp | LED side lamp supported by gooseneck |
| Power Supply | Internal Power Supply, 100-240VAC |
| USB Image Transmission | USB 2.0 (480 Mbps) high speed transmission |
| Video/Audio Recording | One touch button records image and sound synchronously |
| Built-in Microphone | Yes |
| Image Capture | Single or continuous capturing |
| Auto Tune | Yes, one button for optimization image |
| Image Rotation | 0˚, 180˚, flip, mirror |
| Anti-Theft | Kensington anti-theft lock device |
| Free Lumens Software | Supports PC Windows 10, 8, 7, XP, Vista and Mac OSX, Chrome OS ; iOS, Android APP ; WIA & TWAIN interface |
| Included Accessories | Power cable, VGA cable, USB cable, remote control, microscope adapter |
